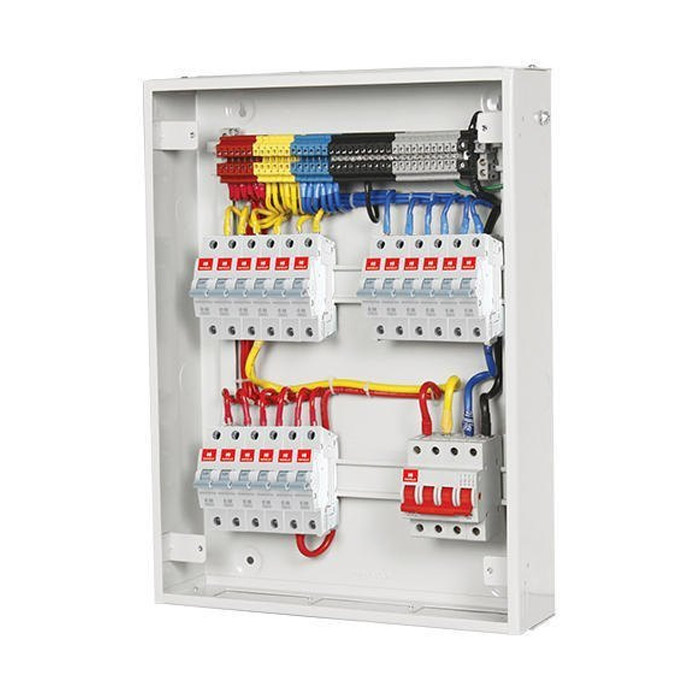

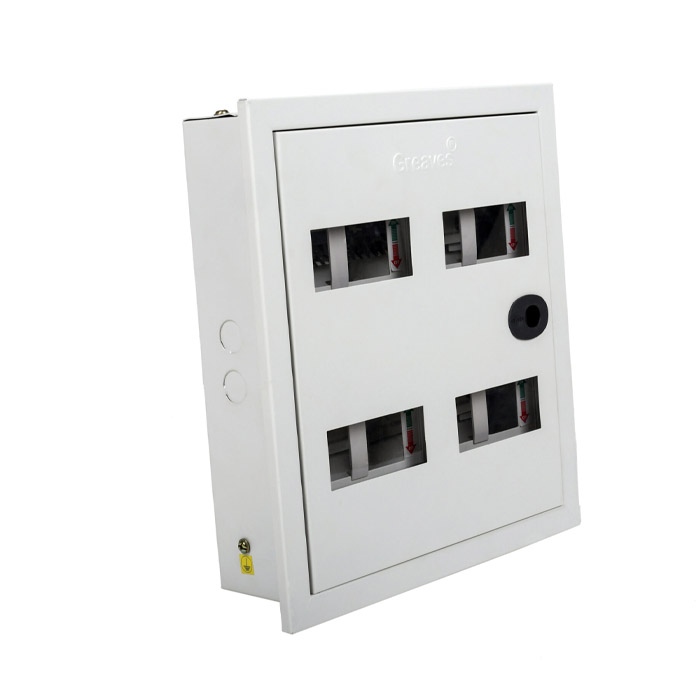

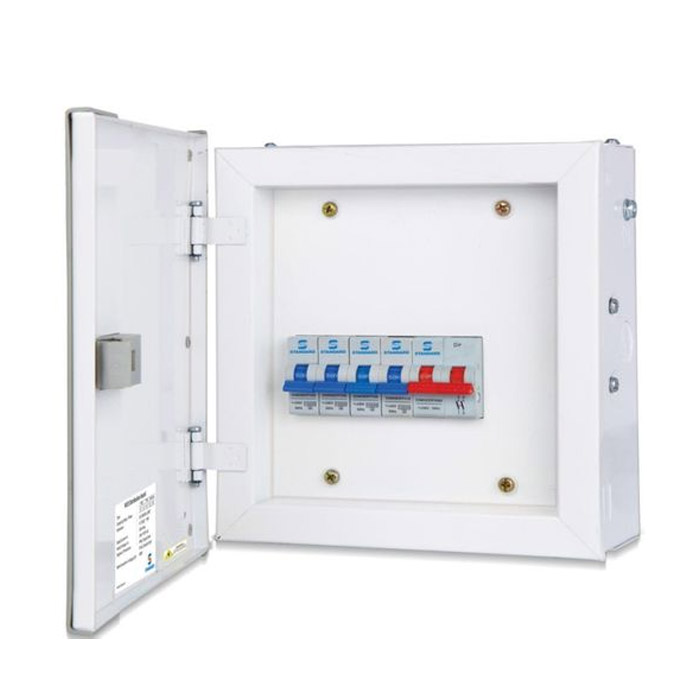

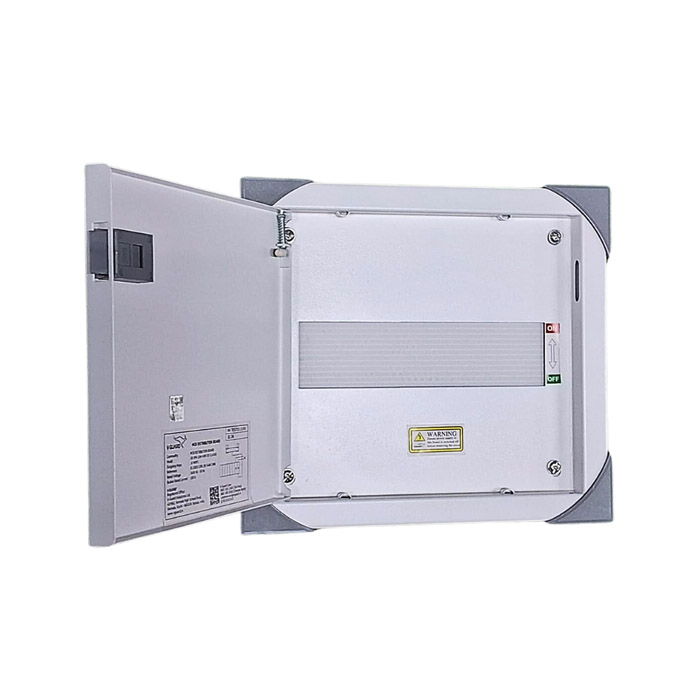

Our premium MCB Box & Distribution Boards are engineered for safe and organized electrical distribution in residential, commercial, and industrial applications.
Available Ways :
Available Categories :
Available Colours :
RAVI Pipes & Wires offers premium MCB Box & Distribution Boards designed for safe and efficient electrical distribution systems. Manufactured from high-quality flame-retardant thermoplastic with superior insulation properties, these distribution boards ensure reliable housing for miniature circuit breakers, RCCBs, and other protective devices. Complying with IS:8623 and IEC standards, our MCB boxes feature robust construction, easy installation, and excellent safety features for residential, commercial, and industrial electrical installations.
| Way Capacity | External Dimensions (W×H×D) mm | Cutout Size (W×H) mm | IP Rating | Current Rating (A) | Voltage Rating (V) | Material |
|---|---|---|---|---|---|---|
| 2 Way | 108×160×74 | 95×145 | IP20 | 63 | 440 | Flame Retardant ABS |
| 4 Way | 144×160×74 | 131×145 | IP20 | 63 | 440 | Flame Retardant ABS |
| 6 Way | 180×160×74 | 167×145 | IP20 | 100 | 440 | Flame Retardant ABS |
| 8 Way | 216×160×74 | 203×145 | IP20 | 100 | 440 | Flame Retardant ABS |
| 10 Way | 252×160×74 | 239×145 | IP20 | 100 | 440 | Flame Retardant ABS |
| 12 Way | 288×160×74 | 275×145 | IP40 | 125 | 440 | Flame Retardant ABS |
| 16 Way | 384×160×74 | 371×145 | IP40 | 160 | 440 | Flame Retardant ABS |
Our MCB Box & Distribution Boards are extensively used in residential main distribution panels, commercial building electrical systems, industrial control panels, apartment complexes, office buildings, shopping malls, hospitals, schools, and manufacturing facilities. Perfect for housing MCBs, RCCBs, isolators, energy meters, and other electrical protection devices with safe and organized power distribution.
Direct wall mounting with visible enclosure, ideal for utility rooms, basements, and industrial applications where easy access is required.
Recessed installation within wall cavities for aesthetic appeal, perfect for residential and commercial applications requiring clean appearance.
Installation within larger electrical panels and switchboards, suitable for industrial control systems and complex electrical distributions.
Arc Fault Protection: Prevents electrical fires from arc faults
Short Circuit Protection: Immediate isolation during fault conditions
Overload Protection: Prevents circuit damage from excess current
Earth Leakage Protection: RCCB compatibility for shock prevention
