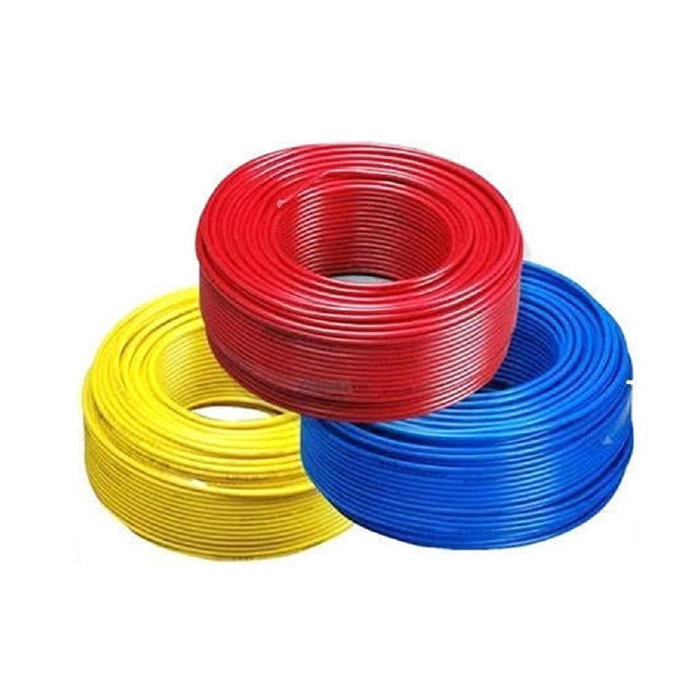

Housing Wire & Electrical Cables
RAVI Pipes & Wires presents high-quality Housing Wire & Electrical Cables
engineered for superior electrical performance and safety. Manufactured with 99.97% pure copper conductors and premium
PVC insulation, our wires ensure excellent conductivity, thermal stability, and flame resistance. Complying with IS:694 and
IS:1554 standards, these cables are ideal for house wiring, industrial installations, control panels, and appliance connections,
providing reliable power transmission with enhanced safety features.
| Wire Size (sq.mm) |
Current Rating (Amps) |
Conductor Diameter (mm) |
Insulation Thickness (mm) |
Overall Diameter (mm) |
Voltage Rating (V) |
Weight (kg/km) |
| 0.75 |
6 |
0.98 |
0.7 |
2.38 |
1100 |
12.5 |
| 1.0 |
8 |
1.13 |
0.7 |
2.53 |
1100 |
15.2 |
| 1.5 |
12 |
1.38 |
0.7 |
2.78 |
1100 |
21.0 |
| 2.5 |
20 |
1.78 |
0.8 |
3.38 |
1100 |
32.5 |
| 4.0 |
30 |
2.26 |
0.8 |
3.86 |
1100 |
48.0 |
| 6.0 |
40 |
2.76 |
0.8 |
4.36 |
1100 |
68.5 |
| 10.0 |
65 |
3.57 |
1.0 |
5.57 |
1100 |
115.0 |
| 16.0 |
90 |
4.51 |
1.0 |
6.51 |
1100 |
175.0 |
Key Features & Benefits of Housing Wire
- 99.97% Pure Copper Conductor: Ensures excellent electrical conductivity and minimal power loss.
- Premium PVC Insulation: Provides superior protection against electrical faults and environmental factors.
- Flame Retardant Properties: Self-extinguishing material prevents fire propagation in electrical systems.
- High Temperature Resistance: Withstands operating temperatures up to 70°C without degradation.
- Flexible Design: Easy to install and route through conduits and tight spaces.
- Color Coded Options: Multiple colors available for easy identification and circuit management.
- Long Service Life: Superior materials ensure reliable performance for over 25 years.
- Moisture Resistant: Excellent protection against humidity and water ingress.
- IS:694 & IS:1554 Compliant: Meets all Indian standards for electrical wiring cables.
- Low Smoke Emission: Minimal toxic fume generation during fault conditions.
- High Tensile Strength: Resistant to mechanical stress during installation and operation.
- Tinned Copper Available: Enhanced corrosion resistance for marine and coastal applications.
Applications & Uses
Our Housing Wire & Electrical Cables are extensively used in residential house wiring, commercial building installations, industrial control panels, appliance connections, lighting circuits, power distribution systems, motor connections, switchboard wiring, and telecommunications equipment. Perfect for both concealed and surface wiring applications with excellent performance in conduits, cable trays, and direct burial installations.
Wire Types Available

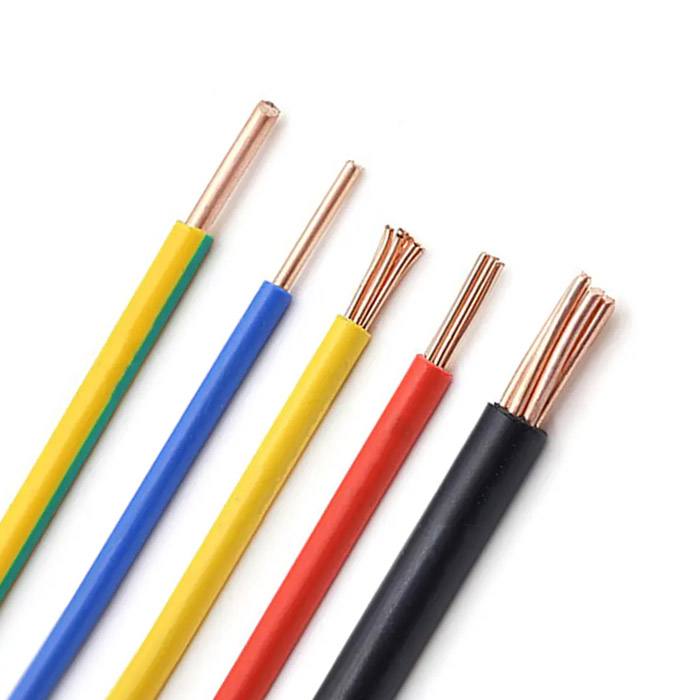

Single Core Wire
Solid conductor design for fixed installations, perfect for house wiring, panel connections, and permanent electrical installations.

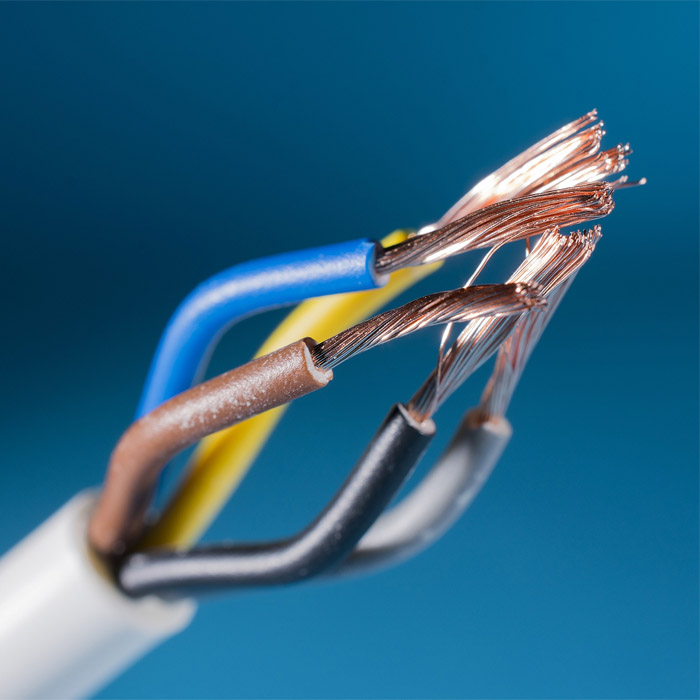

Multi Core Wire
Stranded conductor for enhanced flexibility, ideal for appliance connections, control circuits, and applications requiring movement.

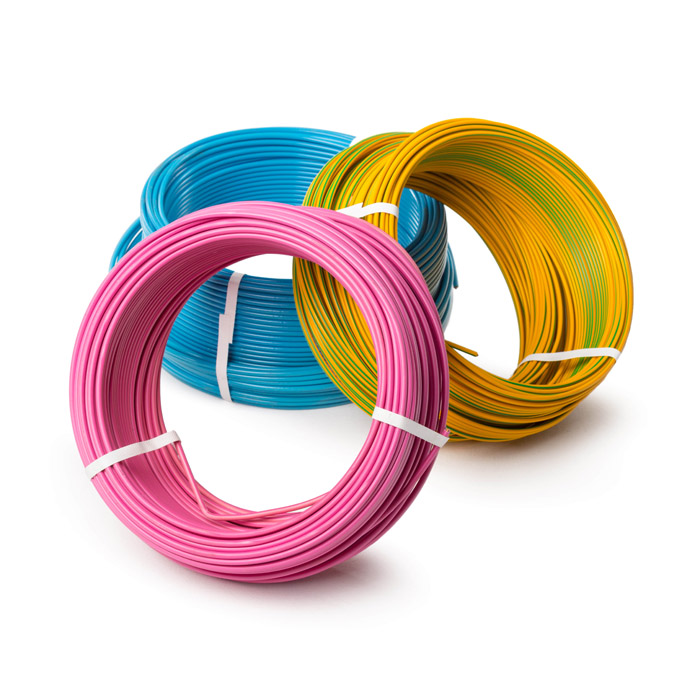

Flexible Wire
Ultra-flexible design for temporary connections, extension cords, portable equipment, and applications requiring frequent movement.
